An AC compressor for a car is a mechanical pump that circulates and compresses refrigerant throughout the vehicle’s air conditioning system. It acts as the heart of the climate control unit, moving the cooling fluid to facilitate heat exchange between the outside air and the cabin interior.
This component exists to solve the problem of heat accumulation within a vehicle’s cabin. Because a car is a sealed environment, sunlight and engine heat quickly raise internal temperatures. The compressor provides the mechanical force required to move refrigerant into a high-pressure state, allowing the system to absorb heat from the cabin and release it into the atmosphere.
How Does a Car AC Compressor Work?
The car AC compressor works by converting mechanical energy from the engine into the pressure required to move refrigerant through the cooling cycle. This process follows a specific sequence of mechanical and thermodynamic changes:
- The engine drives a pulley connected to the compressor’s input shaft, providing the initial power.
- The compressor draws in low-pressure, cool refrigerant gas from the evaporator.
- Internal pistons, vanes, or scrolls compress this gas into a high-pressure, high-temperature state.
- The high-pressure gas travels to the condenser, where it releases heat to the outside air.
- The refrigerant then moves toward the expansion valve, where it drops in pressure and temperature.
- The cycle repeats as the refrigerant returns to the compressor to be pressurized again.
Ac Compressor Replacements For Car we have reviewed in detail
Prices across these 3 run from $182.99 to $281.98; each one has a full review here.

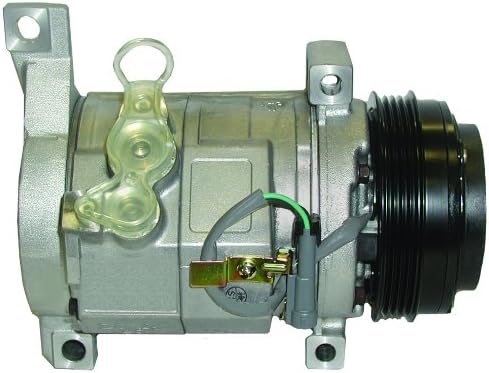

ACDelco GM 15-20941 Air Conditioning Compressor Assembly
$277.69 price checked August 2026
Read our full ACDelco 15-20941 Compressor review
If you own this specific sedan, find the best AC compressor for Chevrolet Cruze to ensure your cooling system performs perfectly.
ACDelco Gold 15-22124A Air Conditioning Compressor
Budget-conscious owners can view the best air conditioning compressor for Ford F-150 under $200 to find a high-value replacement.
$281.98 price checked August 2026
Parts and Stages That Matter in AC Compressor Replacement
Several technical specifications and components determine the performance and compatibility of an AC compressor replacement. Understanding these terms helps ensure the replacement unit functions correctly with the existing vehicle hardware.
Compressor Drive Types
Compressors are typically categorized by their internal design, such as reciprocating, scroll, or rotary. A reciprocating compressor uses pistons to move gas, while a scroll compressor uses two interleaved spirals. The choice of internal design often depends on the vehicle’s requirements for displacement and noise levels.
Pulley and Shaft Dimensions
The pulley is the wheel that connects the compressor to the engine’s serpentine belt. A buyer must confirm the pulley diameter and the shaft diameter. If the shaft diameter varies by even a few millimeters from the original equipment (OE) specification, the pulley will not seat correctly, preventing the compressor from spinning.
Before purchasing, see how to choose your displacement for AC compressors to ensure the unit matches your vehicle’s requirements.
Mounting Bolt Patterns
The mounting bolt pattern refers to the specific spacing of the holes used to secure the compressor to the engine block. A mismatch in bolt pattern means the unit cannot be physically attached to the vehicle. This is a critical measurement that must match the vehicle’s specific manufacturing requirements.
Pressure Ratings
Every compressor has an internal pressure rating, which is the maximum amount of force the seals and housing can withstand. Using a compressor with a pressure rating lower than the vehicle’s system requirements can lead to catastrophic seal failure or housing cracks during high-load operation.
What Changes in Practice When Replacing an AC Compressor?
Replacing an AC compressor changes the reliability and efficiency of the cabin’s cooling performance. When a compressor begins to fail, the primary symptom is a loss of cooling capacity, where the air coming from the vents feels lukewarm rather than cold. In some cases, a failing unit may produce audible grinding or squealing noises as internal bearings wear down.
A new compressor restores the system’s ability to maintain a consistent temperature even when the vehicle is stationary or under high-load driving conditions. It ensures that the refrigerant maintains the correct pressure levels to allow for rapid cooling. However, replacing the compressor does not fix issues related to blocked cooling lines, a leaking condenser, or a faulty expansion valve; these components must be inspected independently to ensure the new compressor functions correctly.
Who Needs a Car AC Compressor Replacement?
A car AC compressor replacement is necessary when the vehicle’s air conditioning system can no longer produce cold air despite the system being charged with refrigerant. This usually occurs when the internal mechanical components of the compressor, such as the pistons or valves, have seized or suffered internal bypass leakage.
Vehicle owners who experience a complete loss of cooling, a significant reduction in cooling speed, or a constant “clicking” sound from the AC clutch need to investigate the compressor. Conversely, a person who has a functional AC system that simply needs a refrigerant top-off does not need a compressor replacement. If the system is blowing cold air but the volume is low, the issue is likely a blockage or a leak elsewhere in the lines, not the compressor itself.
