An AC condenser replacement for a car is a heat exchanger that sits at the front of a vehicle’s cooling system. Its primary job is to dissipate the heat extracted from the vehicle’s interior cabin into the outside air. By facilitating this heat exchange, the condenser ensures that the air blowing into the car remains cool even when the engine is running and the external temperature is high.
The problem this component solves is the accumulation of thermal energy within the car’s internal environment. Without a functional condenser, the refrigerant in the air conditioning system cannot shed its heat. This causes the system to reach a thermal equilibrium where the air inside the car stays warm, eventually leading to a complete failure of the cooling system. A failing condenser often manifests as a gradual loss of cooling power, where the air becomes less cold over several days or weeks as the component becomes clogged or internally damaged.
How does a car AC condenser work?
The car AC condenser works by passing high-pressure, high-temperature refrigerant gas through a series of cooling fins and tubes. This process follows a specific sequence to move heat from the inside of the car to the outside.
- Hot gas enters the condenser from the compressor.
- The refrigerant flows through the internal tubing, which is surrounded by a dense array of aluminum or copper fins.
- Outside air flows through these fins, absorbing heat from the refrigerant.
- The refrigerant loses heat as it travels through the condenser, causing it to transition from a high-pressure gas into a high-pressure liquid.
- The cooled liquid refrigerant exits the condenser and travels toward the expansion valve or orifice tube.
Ac Condenser Replacements For Car we have reviewed in detail
Prices across these 3 run from $105.28 to $139.39; each one has a full review here.

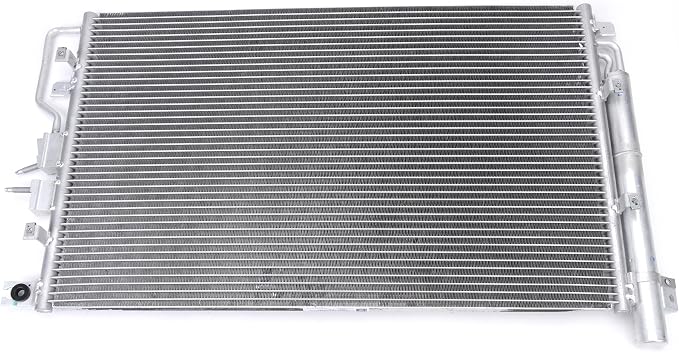

GM Genuine Parts 15-63816 Air Conditioning Condenser
$105.28 price checked August 2026
Read our full GM Genuine Parts 15-63816 Air Conditioning Condenser review
Parts and stages that matter in an AC condenser
Several specific design elements determine how effectively a car AC condenser performs its heat exchange duties and how long it remains functional.
Fin density and material
Fin density refers to the number of cooling fins per inch of the condenser surface. A higher fin density increases the surface area available for heat exchange, which allows for a more compact unit that still provides high cooling capacity. Most modern units use aluminum because it offers a high strength-to-weight ratio and excellent thermal conductivity compared to heavier materials.
Core thickness and tube diameter
The core thickness is the depth of the condenser unit, while the tube diameter determines the volume of refrigerant that can move through the system at once. A thicker core provides more surface area, but it also increases the pressure drop across the unit. If the tubes are too narrow for the vehicle’s cooling requirements, the compressor must work harder, which can lead to premature component failure.
Port alignment and mounting points
Port alignment refers to the precise positioning of the inlet and outlet connections where the high-pressure lines attach. Because the condenser is often located in a tight space between the radiator and the front grille, even a few millimeters of misalignment can prevent the high-pressure lines from connecting without being bent. Proper mounting points ensure the unit sits flush against the radiator and does not vibrate against other engine components.
What does a new AC condenser change in practice?
Replacing a car AC condenser changes the cooling performance of the vehicle by restoring the system’s ability to reject heat effectively. When a condenser is clogged with debris or has internal leaks, the compressor has to run longer and hotter to achieve the same temperature drop, which can lead to higher fuel consumption and increased wear on the compressor.
Cooling speed and recovery
A new condenser allows the system to reach the desired cabin temperature faster. In a vehicle with a degraded condenser, the air might only feel “cool” rather than “cold” during peak summer heat. A fresh unit restores the ability to drop the internal temperature rapidly after the car has been parked in the sun.
Operating pressures
A functional condenser maintains the correct pressure balance within the refrigerant loop. If the condenser is restricted, high-side pressures will spike. If these pressures exceed the safety limits of the system, the high-pressure cutout switch will engage, shutting down the air conditioning entirely to prevent a catastrophic failure of the compressor or hoses.
Who needs an AC condenser replacement?
A car AC condenser replacement is required when there is a measurable drop in cooling performance that cannot be solved by recharging the refrigerant. This typically occurs when the condenser is physically damaged or internally obstructed.
Signs of a failing condenser
You need a replacement if the front of the condenser shows signs of impact damage, such as dents or punctured fins, which can cause refrigerant to leak out of the system. You also need a replacement if the condenser is heavily clogged with road salt, dirt, or debris, as these blockages prevent air from passing through the fins.
Situations where a replacement is not needed
You do not need a new condenser if the air coming from the vents is warm but the compressor is still cycling on and off correctly, and the system is low on refrigerant. In these cases, the issue is usually a leak in a different part of the system, such as a hose or the evaporator, rather than a failure of the condenser itself. If the cooling is consistent but simply not as cold as it used to be, the system may just require a professional recharge and a leak test of the entire loop.
