When researching car AC condenser replacements, most listings are filled with technical shorthand and marketing fluff. For a budget-first shopper, the most load-bearing terms are those involving material standards, port configurations, and refrigerant types. These dictate whether the part will physically fit your vehicle and if it can withstand the high-pressure cycles of an automotive cooling system. You can largely ignore subjective adjectives like “heavy-duty” or “high-performance” unless they are paired with a specific material grade or cooling capacity, as these terms lack a standardized measurement in the aftermarket parts industry.
AC Condenser Material and Construction Specs
- 18/10 Stainless Steel – This refers to a grade of stainless steel containing 18% chromium and 10% nickel. Higher nickel content generally improves corrosion resistance in high-moisture environments, making it a standard for high-quality condensers.
- Aluminum Core – This describes the primary heat exchange surface made of aluminum. A thicker core wall can withstand higher internal pressures, while a thinner wall might offer lighter weight but less durability.
- Fin Pitch – This is the distance between the individual metal fins on the condenser face. A tighter fin pitch increases the surface area for heat exchange but can restrict airflow if the design does not account for high-velocity air.
- Brazed Construction – This indicates that the components are joined using a high-temperature metal melting process rather than welding or mechanical fasteners. Brazed joints are essential for preventing core leakage under high pressure.
- Corrosion Coating – This is a chemical treatment or powder coating applied to the exterior. Look for specific mentions of “e-coating” or “powder coating,” as these provide better protection against road salt and debris than simple paint.
Where these choices show up in our reviews
These 3 have their own full review on this site, and run from $105.28 to $333.82.
GM Genuine Parts 15-63816 Air Conditioning Condenser
$105.28 price checked August 2026
If you own one of these classic vans, find the best ac condenser for chevy astro options here.
Read our full GM Genuine Parts 15-63816 Air Conditioning Condenser review

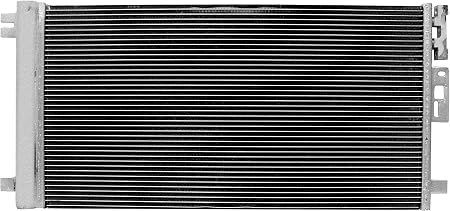

ACDelco 15-63092 GM Original Equipment Air Conditioning Condenser
$109.43 price checked August 2026
Owners of heavy-duty vehicles can find our top rated Buick Commercial Chassis condenser options.
GM 15-6100 Air Conditioning Condenser
You can learn more about different types of ac condensers available today.
$333.82 price checked August 2026
AC Condenser Refrigerant and Pressure Specs
- R134a Compatibility – This confirms the condenser is designed for the R134a refrigerant standard used in most vehicles manufactured before 2015. Using an incompatible condenser can lead to seal failure or chemical degradation.
- R1234yf Compatibility – This indicates the condenser is designed for the newer R1234yf refrigerant. Because R1234yf operates at different pressures and chemical properties, using an R134a-only condenser in an R1234yf system is a critical compatibility failure.
- Burst Pressure Rating – This is the maximum internal pressure the condenser can withstand before structural failure. A higher burst pressure rating provides a safety margin against pressure spikes during high-load cooling cycles.
- Core Thickness – This is the physical depth of the cooling fins and tubes. A thicker core generally allows for more refrigerant passage, which can improve cooling capacity in high-heat climates.
AC Condenser Physical Fitment and Port Specs
- Inlet/Outlet Port Diameter – This is the measurement of the openings where the high and low-pressure lines connect. You must match the diameter exactly to your vehicle’s existing lines to ensure a leak-proof seal.
- Port Orientation – This describes the physical direction (e.g., “bottom-left” or “top-right”) that the ports face. Even if the diameter is correct, the wrong orientation will prevent the hoses from reaching the mounting points.
- Mounting Bracket Type – This refers to the physical hardware used to bolt the condenser to the vehicle frame. Standardized brackets are common, but some vehicles require specific “tab” locations to ensure the unit does not vibrate or shift.
- Condenser Height and Width – These are the external dimensions of the unit. Because the condenser sits in a tight space in front of the radiator, even a few millimeters of difference can prevent the front bumper or hood from closing.
- Core Face Area – This is the total surface area available for heat dissipation. A larger face area allows the system to shed heat faster, which is a primary factor in how effectively the AC cools the cabin in stop-and-go traffic.
Commonly Confused AC Condenser Terms
Condenser vs. Evaporator
The condenser is located at the front of the vehicle and rejects heat to the outside air, while the evaporator is located inside the dashboard and absorbs heat from the cabin. You must purchase the condenser to replace the external cooling unit.
To understand the mechanics, see how an ac condenser works in detail.
OEM vs. Aftermarket
OEM (Original Equipment Manufacturer) parts are produced by the vehicle brand or a primary supplier like Denso or Valeo. Aftermarket parts are produced by third-party manufacturers; while often more affordable, aftermarket parts may use different material grades or fin densities than the factory original.
R134a vs. R1234yf
These are two different types of refrigerant fluids. They are not interchangeable. If your vehicle’s sticker under the hood specifies R1234yf, you must purchase a condenser specifically rated for that refrigerant to ensure chemical compatibility with the seals and pressure ratings.
Core Leakage vs. Port Misalignment
Core leakage is a structural failure where the bond between the tubes and fins fails, causing the refrigerant to escape through the face of the unit. Port misalignment is a fitment issue where the connection points are in the wrong position, preventing the hoses from being attached correctly.
