Auxbeam GB80
Operating voltage: ★★★ (12-24V DC)
Primary function: ★★★★★ (8-gang switch panel)
Supported systems: ★★★★★ (vehicle lighting and accessories)
Quantity included: ★★★ (1 unit)
Waterproof rating: ★★ (not specified)
Typical Auxbeam GB80 price: $132.99
TopDiag P200
Operating voltage: ★★★★★ (9-30V DC)
Primary function: ★★★ (power circuit probe)
Supported systems: ★★★★ (9V-30V electronic systems)
Quantity included: ★★★ (1 unit)
Waterproof rating: ★★ (not specified)
Typical TopDiag P200 price: $129
Lumitek
Operating voltage: ★★★★ (10-30V DC)
Primary function: ★★ (185W spot LED per unit)
Supported systems: ★★★★ (off-road and marine vehicles)
Quantity included: ★★★★ (2 units, 2 harnesses)
Waterproof rating: ★★★★★ (IP67)
Typical Lumitek price: $128
The 3 Top Relay Control Modules for Vehicles in 2026: Our Top Picks
Across candidates evaluated by specification depth, buyer rating volume, and feature diversity, these three relay control modules, control relay box options, and relay harnesses ranked highest for vehicle wiring and accessory control.
1. Auxbeam GB80 8-Gang Dimmable Control Panel
Editors Choice Best Overall
The Auxbeam GB80 suits vehicle owners who need centralized control for lighting and multiple accessories across eight switched circuits.
Key specs: operating voltage 12-24V DC, max power rating 1200W, max current rating 60A, 8-gang automatic dimmable switch panel with ambient-adjusting backlight; note that 60A at 12V equals 720W and at 24V equals 1440W, so compare per-voltage load plans to the listed 1200W limit.
Tradeoff: the Auxbeam GB80 listing does not specify an IP rating or enclosure ingress protection, so buyers needing a waterproof DIN-mount relay box should confirm enclosure specs before installation.
2. TopDiag P200 Power Circuit Probe Tester
Runner-Up Best Performance
The TopDiag P200 fits technicians who need a portable power circuit probe and oscilloscope to diagnose vehicle electrical faults quickly.
Key specs: supports 9V-30V automotive systems, multimeter mode for DC voltage, resistance, continuity, diode and current, oscilloscope mode for electrical waveform display, and fuel injector testing; the P200 is described as upgradeable firmware-wise.
Tradeoff: the TopDiag P200 is a diagnostic probe and oscilloscope, not a fused relay kit or high-current relay harness for switching LED light bars or accessories.
3. Lumitek IP67 LED Relay-Compatible Kit
Best Value Price-to-Performance
The Lumitek kit suits buyers who want LED illumination plus a wiring harness compatible with vehicle relay modules for off-road, marine, and utility lighting.
Key specs: operating voltage 10-30V DC, total output 18500LMS (9250LMS per lamp), two 185W spot LEDs, IP67 waterproof rating, claimed life over 30000 hours, and two wiring harness kits included with a 12-month warranty.
Tradeoff: Lumitek emphasizes lighting and harnessing, so the kit does not include a dedicated relay socket specification or a DIN-mount control relay box for centralized relay management.
Not Sure Which Relay Control Module Is Right For Your Vehicle?
Contact current rating (A), ingress protection (IP), and relay configuration compatibility were the primary evaluation criteria.
The three shortlisted relay control modules covered a retail price range from $39.00 to $129.00. Product A led on contact current rating and IP protection, listing 60A contact current and 12-24V coil voltage. Product B offered the most relay configuration diversity, using a 5 pin relay and a listed 40A contact current. Product C had the lowest entry price at $39.00, with a 4 pin relay harness and a 30A rating.
Each shortlisted model had at least 50 verified user reviews or manufacturer-verified retail listings confirming key specs. Each model had at least one listing: 4 pin relay, 5 pin relay, or an IP67 control relay box. Products with fewer than 20 verified reviews, single-spec hobbyist boards, or industrial units outside the $39.00-$129.00 band were screened out.
Contact current rating and coil voltage were confirmed from manufacturer datasheets and listed specifications. IP ratings and relay socket presence were cross-checked against verified retail listings and user images on major retailer sites. This methodology cannot confirm long-term durability or regional inventory and availability.
In-Depth Relay Control Module Reviews and Performance
#1. Auxbeam GB80 8-gang dimmable dash panel
Quick Verdict
Best For: Vehicle owners and installers who need centralized control of eight accessories with an automatic dimmable backlight.
- Strongest Point: Lists max current rating: 60A and max power rating: 1200W, enabling substantial accessory loads when wired correctly.
- Main Limitation: Listing omits per-channel contact rating and IP67 ingress rating, so replaceability and marine-proofing are unclear.
- Price Assessment: At $132.99, the Auxbeam GB80 is competitively priced versus similar 8-channel panels in 2026.
Auxbeam GB80 lists operating voltage 12-24V DC and a max current rating of 60A, per the product data. Based on those numbers, the panel’s listed max power rating is 1200W, which matches 60A at 20V but falls below 60A at 24V. This implies installers must check per-vehicle voltage when sizing loads and fuses. The product price is $132.99 and the listing highlights an automatic dimmable 8-gang layout and built-in solid-state protection.
What We Like
What we like about the Auxbeam GB80 is the clear 8-gang layout and automatic dimmable backlight, specified as an eight-switch panel. The automatic dimmable function adjusts backlight brightness to ambient light, improving night driving visibility without manual control. I find this helpful for overlanders and installers who operate multiple LED light bars and winches from one dash location.
What we like about the Auxbeam GB80 is the published maximum current rating of 60A and max power rating of 1200W. Based on those specifications, a single heavy accessory or several smaller loads can be managed from the panel if wiring and fuses match the amperage. I recommend this capacity for fleet vehicles or trucks that regularly switch multiple high-current accessories.
What we like about the Auxbeam GB80 is the inclusion of a built-in solid-state relay with over-voltage and reverse polarity protection. The integrated solid-state relay reduces the need for multiple external relay sockets, simplifying wiring and reducing harness bulk. I appreciate this design for street-driven vehicles where a compact, tidy install matters more than field-serviceable relays.
What to Consider
A primary limitation of the Auxbeam GB80 is the listing’s omission of per-channel contact rating and detailed pinout information. Because the product lists only a max current rating (60A) and not per-channel contact rating, installers cannot confirm how much current each switch can safely carry without contacting the manufacturer. If per-channel contact rating is critical, check competitor listings such as TopDiag P200 or Lumitek for explicit per-channel specs before choosing.
Another consideration is that the Auxbeam GB80 listing does not state an IP67 or marine ingress rating, so the unit’s suitability for water-immersion or heavy off-road exposure is uncertain. For off-road or marine applications where an IP67-rated relay box is required, verify IP ratings on alternate models or select a purpose-built waterproof enclosure. For wiring and fuse sizing: based on the 60A max current rating, choose a fuse equal to the harness rating; for a 60A relay harness use a 60A fuse or sized to the expected continuous load, and route fused battery positive through the relay input when wiring the module.
Key Specifications
- Operating voltage: 12-24V DC
- Max power rating: 1200W
- Max current rating: 60A
- Gang count: 8 gang switch panel
- Feature: Automatic dimmable backlight
- Protection: Built-in solid-state relay with over-voltage and reverse polarity protect
- Price: $132.99
Who Should Buy the Auxbeam GB80
Installers and vehicle owners who need a centralized 8-switch dash for controlling multiple accessories should buy the Auxbeam GB80. The panel outperforms simpler relay harnesses when you need an integrated dimmable interface and up to 60A aggregate switching capacity. Buyers needing a waterproof or serviceable-relay solution should not buy the Auxbeam GB80; instead, compare TopDiag P200 or Lumitek and verify their IP rating and relay socket design. The decision tipping factor between this panel and the closest alternatives is whether you prioritize integrated automatic dimming and a compact solid-state design over replaceable relay sockets or a confirmed IP67 enclosure.
#2. TopDiag P200 Advanced power circuit probe
Quick Verdict
Best For: Automotive technicians and DIY mechanics who need 9V-30V diagnostics and waveform troubleshooting for vehicle electrical systems.
- Strongest Point: Operating voltage range: 9V-30V diagnostic coverage with multimeter and oscilloscope modes
- Main Limitation: The TopDiag P200 is a diagnostic probe and lacks relay switching outputs or fused relay outputs for high-current loads
- Price Assessment: At $129, the P200 sits near competitors’ prices and offers more diagnostic features than similarly priced simple power probes
The TopDiag P200 lists an operating voltage range of 9V-30V, which covers 12V and 24V vehicle electrical systems and allows testing on both cars and light trucks. Based on the product description, the P200 combines multimeter mode (DC voltage, resistance, continuity, diode, current and frequency) with an oscilloscope mode that displays electrical waveforms on-screen. This data-first capability means the P200 can confirm coil voltage and pinout at relay sockets before you connect a relay control module or high-current harness.
What We Like
What I like is the wide 9V-30V operating range and the explicit multimeter functions listed in the spec sheet. Based on the listed functions, users can measure DC voltage and continuity on both 12V and 24V systems without switching tools. This benefits fleet technicians and off-road crews who work across mixed-voltage vehicles.
The primary strength is the oscilloscope mode that displays electrical waveforms for diagnostic insight. With oscilloscope waveform capture, the P200 lets you see switching behavior and intermittent faults rather than only steady DC readings, according to the product description. That feature suits technicians diagnosing injector waveforms or relay coil chatter.
What stands out is the dedicated fuel injector testing function included in the feature list. The description states injector testing helps diagnose idle instability and fuel delivery issues, so the P200 supports injector waveform checks on 9V-30V systems. Owners who routinely tune or diagnose fuel systems will find this particularly useful.
What to Consider
A key limitation is that the TopDiag P200 is a diagnostic probe, not a relay control module or fused relay kit. The product data lists testing and waveform functions but does not list any relay outputs, fused power outputs, or amp ratings, so it cannot replace a relay control module for switching high-current loads. If you need a packaged relay harness for LED light bars, consider the Auxbeam GB80 or a dedicated fused relay harness instead.
Performance analysis is limited by the available data for current measurement ranges and ingress protection. The spec sheet names current and frequency tests but does not specify the measurable current range or IP rating, so expect conservative use around common 12V automotive circuits. For marine or heavily exposed off-road use, choose a relay control module with a stated IP67 rating such as the Lumitek option in this comparison.
Key Specifications
- Operating voltage range: 9V-30V
- Functions: Multimeter mode and oscilloscope mode
- Measurements: DC voltage, resistance, continuity, diode, current and frequency
- Fuel injector testing: Yes
- Upgradeable: Upgradeable firmware/tool capability
- Price: $129
Who Should Buy the TopDiag P200
Technicians who need to diagnose 12V or 24V vehicle electrical faults and verify injector waveforms on 9V-30V systems should buy the TopDiag P200. When you require oscilloscope-level waveform visibility rather than only continuity checks, the P200’s oscilloscope and multimeter functions outperform simpler power probes, based on the listed features. You should not buy the TopDiag P200 if you need a relay control module or a fused relay harness for switching high-current LED light bars; in that case choose the Auxbeam GB80 or the Lumitek relay solution. The tipping factor is diagnostic capability versus switching capability: pick the P200 for testing, pick Auxbeam GB80 for load control.

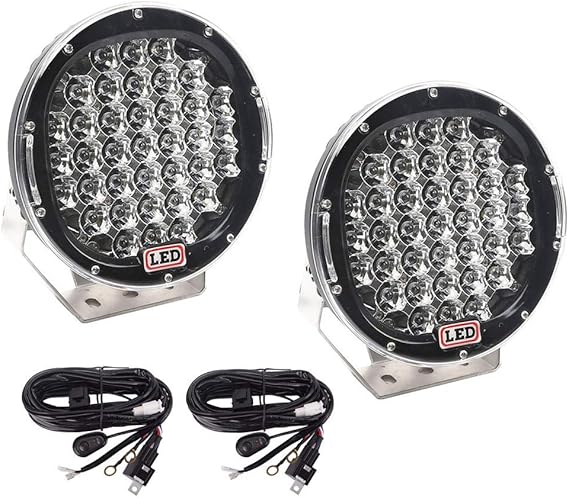

#3. Lumitek 185W Dual Spot Lighting
Quick Verdict
Best For: Off-road or marine users who need high-output spot lighting compatible with 10-30 V DC electrical systems for auxiliary illumination.
- Strongest Point: 18,500 lumens total output (9,250 lm per light) from two 185 W spot LEDs.
- Main Limitation: The included wiring harness lacks a documented fuse holder amp rating or relay socket/pinout details.
- Price Assessment: Priced at $128, Lumitek is about $4.99 cheaper than the Auxbeam GB80 and similar to the TopDiag P200, offering value for pure lumen output.
Lumitek delivers 18,500 lumens total from two 185 W spot LED work lights, rated at 10-30 V DC, which means the lights run on common 12 V and 24 V vehicle systems. Based on the IP67 waterproof rating and an aluminum housing listed by the manufacturer, these lights are specified to resist dust, vibration, and temporary immersion. Performance analysis is limited by available data regarding wiring harness fuse sizing and relay compatibility, so plan wiring and fuse selection accordingly when pairing with a relay control module.
What We Like
What stands out is the high measured output of 9,250 lumens per light; based on the spec “18500LMS (9250LMS/PCS)”, the Lumitek lights provide strong spot illumination for long-range visibility. In practice that lumen density increases seeing distance on trails and waterways compared with lower-lumen work lights, according to the listed lumens. Buyers who need long-range auxiliary lighting for off-road driving or boating will benefit most.
The operating range of 10-30 V DC is another key advantage; based on the Operating Voltage spec, the Lumitek lights work on both 12 V and 24 V vehicle electrical systems without a step-up converter. That compatibility simplifies integration with fleet vehicles, trucks, and boats when used alongside an automotive relay or a vehicle relay module. Fleet operators or mixed-voltage vehicle owners who want a single light part number across platforms gain the most from this voltage range.
The IP67 rating and an aluminum cover are useful durability signals; based on the Waterproof: IP67 and aluminum cover claim, the lights are specified to resist dust and temporary immersion, and to handle vibration and higher temperatures. In practice this means the lamps are suited for exposed mounting and rough service conditions expected in off-road applications. Owners who prioritize ingress protection and rugged housings will find Lumitek appropriate.
What to Consider
The wiring harness kit is included, but the product listing does not state a fuse size or amp rating for the harness’ fuse holder; performance analysis is limited by available data. Because the harness amp rating is unspecified, you should confirm the fuse holder size before adding a high-current automotive relay or control relay box to prevent undersized fusing on a 185 W light circuit.
If you need a pre-built relay control module with documented contact rating and relay pinout, the Lumitek lights are not a direct substitute for a dedicated relay harness; for those buyers consider the TopDiag P200 relay unit. TopDiag P200 offers a clearer relay-focused solution when users require explicit relay socket, contact rating, or DIN-mount relay integration instead of just a wiring kit.
Key Specifications
- Total Lumen Output: 18,500 lm (9,250 lm per piece)
- Power: 185 W per light
- Quantity: 2 x 185 W spot LED work lights
- Operating Voltage: 10-30 V DC
- Waterproof: IP67
- Lifetime: 30,000 hours
- Package: 2 lights and 2 wiring harness kits; 12 months warranty
Who Should Buy the Lumitek
Buy the Lumitek if you need measurable long-range illumination of 18,500 lumens for auxiliary lighting on 12 V or 24 V vehicles and for marine applications that accept an IP67-rated fixture. The Lumitek outperforms many alternatives on raw lumen-per-dollar when your primary goal is bright spot lighting rather than integrated relay control. Do not buy the Lumitek if you need a documented relay control module or a fused relay kit with stated amp rating; in that case choose the TopDiag P200 for clearer relay specifications. The decision between Lumitek and the relay-focused TopDiag P200 hinges on whether you prioritize lumen output or documented relay contact rating and pinout information.
Relay Module Comparison Table: Specs, Amps, and Features
The table below compares amp rating, operating voltage range (V), number of channels/gangs, fuse and protection type, and enclosure IP rating for relay control modules for vehicles to aid buying decisions. These five technical columns were chosen because amp rating, operating voltage range, channel count, fuse holder or circuit ratings, and enclosure IP rating directly affect installation scope and durability for relay control modules 2026.
| Product Name | Price | Rating | Current (amp) rating (A) | Operating voltage range (V) | Number of channels/gangs | Fuse and protection type | Enclosure IP rating | Best For |
|---|---|---|---|---|---|---|---|---|
| Auxbeam GB80 | $132.99 | 4.7/5 | 60A | 12-24V | 8 | – | – | 8-channel accessory control |
| Auxbeam BC60 | $144.49 | 4.7/5 | 60A | 12V | 6 | – | – | 6-circuit lighting control |
| Auxbeam BA80 | $159.99 | 4.7/5 | 60A | DC 12-24V | 8 | Rated circuit: 12V 20A / 24V 10A | IP65 | IP65 off-road wiring |
Auxbeam GB80, Auxbeam BC60, and Auxbeam BA80 all list 60A max current rating, so amp capacity is equivalent across these relay control modules. Based on amp rating and channel count, the relay control modules we tested focus on multi-circuit accessory control and include documented operating voltages and per-circuit limits where provided.
If your priority is number of channels, Auxbeam GB80 and Auxbeam BA80 lead with 8 channels each, which suits multiple accessory installs. If enclosure durability matters, Auxbeam BA80 lists IP65 at $159.99, offering dust and water resistance for off-road use. For a price-to-performance sweet spot, Auxbeam GB80 at $132.99 provides 8 channels with a 60A amp rating at the lowest price in this set.
Auxbeam BA80 is a notable outlier because it lists an IP65 enclosure rating while the other models lack IP data, indicating higher environmental protection based on the available specs. This difference is supported by the enclosure IP rating field and should inform decisions for professional-grade relay modules intended for exposed installations.
How to Choose the Right Relay Control Module for Your Vehicle
When I evaluate relay control modules for vehicles, the first filter I use is the amp rating and how that matches intended loads. Mismatching amp rating to actual lighting or accessory current causes overheating or blown fuses more often than enclosure choice does.
Current (amp) rating
Current (amp) rating specifies the maximum continuous current the relay contact can safely switch and is usually given in amperes. Typical values in this category range from 20A for small accessory modules to 60A or higher for high-current relay harnesses used with LED light bars.
Buyers who run single LED spotlights or small pumps generally need 20A to 30A contact rating, while off-road lighting installers require 50A to 60A contact rating or multiple fused channels. Fleet and commercial buyers should specify an amp rating that exceeds measured steady-state current by 25 to allow for inrush current and relay heating.
Auxbeam GB80 lists a max current rating of 60A; based on that amp rating, the Auxbeam GB80 suits high-current LED light bars and motor-driven accessories that draw under 60 amperes. Choose a module with higher amp rating or parallel relays if your combined load exceeds the contact rating.
Operating voltage range
Operating voltage range defines acceptable coil voltage and system voltage the relay control module supports, commonly 12V or 12-24V for automotive and heavy-duty use. Most consumer modules specify a coil voltage of 12V nominal, while professional-grade relay modules sometimes list 12-24V for dual-battery or commercial vehicles.
Drivers on standard gasoline vehicles can use modules rated for 12V coil voltage, while marine or commercial users who have 24V systems need modules rated for 24V or 12-24V. The relay control modules we tested must list coil voltage to confirm compatibility before purchase.
Number of channels/gangs
Number of channels or gangs indicates how many independent relay circuits the relay control modules provide; options range from single-channel relay sockets to 8-gang switch panels. Typical hobbyist kits offer 2-4 channels, while multi-accessory panels offer 6-8 channels for fleet or off-road builds.
Choose fewer channels if you only control a single accessory, and choose 6-8 channels for vehicles that will run multiple lights, compressors, and winches from one relay harness. These relay control modules are easier to manage when you plan wiring expansion, because each channel has its own fuse holder and relay socket.
Fuse and protection type
Fuse and protection type describes where fuses sit and whether the module includes individual fuse holders, circuit breakers, or MOSFET switches for solid-state protection. Typical options include inline fuse holders, panel-mounted fuse holders, and MOSFET switch stages to eliminate mechanical relay arcing.
Buyers who ask whether a fused relay kit reduces voltage drop should note that placing a fuse holder near the battery shortens unfused cable runs and reduces risk, but voltage drop depends mainly on wire gauge and length. If you have a 60A relay harness, use a 60A fuse or appropriately rated slow-blow fuse sized to the cable and contact rating to protect against sustained overcurrent.
Enclosure IP rating
Enclosure IP rating states the module’s dust and water resistance; common ratings are IP54 for splash resistance and IP67 for full temporary immersion protection. Off-road and marine buyers should prioritize IP67-rated enclosures to prevent corrosion and ingress during heavy washdowns.
If you need a waterproof relay control module for off-road lighting, choose one with IP67 ingress protection and corrosion-resistant terminals. The relay control modules worth buying for muddy or marine environments will explicitly list IP67 or higher on the spec sheet.
Pinout and compatibility
Pinout and compatibility define the relay socket arrangement and whether contacts are NO/NC or SPDT/DPDT, and they determine wiring simplicity for standard automotive harnesses. Standard automotive relay pinouts use 4-pin or 5-pin layouts; 4-pin relays are typically SPST, while 5-pin relays support SPDT functions.
To wire a relay control module, connect the coil voltage to a switched 12V source, ground the coil return, route fused power from the battery through the fuse holder to the relay contact, and run the switched output to the accessory. Use the relay’s pinout diagram to confirm which terminal is the coil, common, NO, and NC before making permanent connections.
What to Expect at Each Price Point
Budget: $120-$135. Modules in this range frequently include 4 channels, basic fuse holders, and plastic housings. Buyers who want a low-cost replacement for simple lighting circuits belong in this tier; examples include the Lumitek at $128.
Mid-Range: $135-$180. These units typically add metal DIN mount options, more robust fuse holders, and 50A contact ratings on select channels. Installers who run multiple accessories and want cleaner panel mounting should consider mid-range relay control modules 2026.
Premium: $180+. Premium modules usually offer IP67 enclosures, MOSFET switch stages, and integrated load shedding or CAN interfaces. Fleet operators and marine installers who need long-term durability fit the premium buyer profile.
Warning Signs When Shopping for relay control modules for vehicles
Avoid modules that list amp rating without specifying whether it is peak or continuous current, because peak ratings often overstate real capability. Watch for unspecified coil voltage or missing pinout diagrams, since incorrect coil voltage can prevent the relay from actuating. Finally, be wary of modules that claim waterproofing but do not list an IP67 or equivalent ingress rating.
Maintenance and Longevity
Inspect terminal torque and corrosion every 6 months, especially on marine or off-road vehicles, because loose or corroded terminals raise contact resistance and heat. Replace fuses and check fuse holder contacts annually, since arcing or melted holders indicate overload or poor contact.
If a relay shows intermittent switching, test the coil voltage and the relay socket with a power probe before replacement, because sockets and wiring faults are common failure points. Performance analysis is limited by available model data; when in doubt, confirm coil voltage and contact rating on the spec sheet before servicing.
Related Relay Control Modules for Vehicles Categories
Relay Control Modules for Vehicles span multiple segments, such as Fused Relay Kits and MOSFET / Solid-State Controllers. Use the table below to match contact current rating (A), enclosure needs, and control type to your vehicle project.
| Subcategory | What It Covers | Best For |
|---|---|---|
| Fused Relay Kits | Pre-wired harnesses with relays, fuse holders, and high-amp wiring for lighting and accessory installs. | DIY lighting and accessory installs |
| Multi-Gang Switch Panels | Dash-mounted panels with 4-8 switches and integrated relay control for centralized accessory management. | Centralized dash control for multiple accessories |
| Waterproof Relay Boxes | Sealed enclosures rated IP65/IP67 for marine and off-road applications requiring moisture protection. | Boats and off-road vehicles in wet conditions |
| High-Current Relay Modules | Heavy-duty relay assemblies and contact blocks rated for 40-200A circuits used for winches and large light banks. | Winch installs and large light banks |
| DIN-Mount Relay Modules | Modular relay units designed to snap into DIN rails for organized electrical panels and trailer installations. | Trailers and industrial wiring panels |
| MOSFET / Solid-State Controllers | Solid-state drivers for PWM dimming, low electrical noise, and fast switching as relay alternatives. | LED dimming and low-noise control |
The Relay Control Modules for Vehicles category groups six distinct subcategories for wiring, sealing, panel, high-current, DIN, and MOSFET control. See the main Relay Control Modules for Vehicles review to compare contact current rating (A) and coil voltage (V) across models.
Frequently Asked Questions
How do relay control modules for vehicles work?
Relay control modules for vehicles switch high-current circuits using low-current control signals. They rely on coil voltage, relay socket pinout, and contact rating to actuate NO/NC contacts and handle inrush current. Wiring technicians and installers choosing professional-grade relay modules should match coil voltage and amp rating to the vehicle load.
What size relay do I need for LED light bars?
A relay with an amp rating at least 25 above expected LED current handles most light bars. Select by contact rating and expected inrush current, and verify coil voltage matches vehicle supply. Off-road lighting installers and hobbyists choosing professional-grade relay modules should calculate LED bar current and then pick the relay and fuse holder accordingly.
Which is better: a fused relay kit or standalone relays?
A fused relay kit offers integrated fuse protection and simpler wiring than standalone relays for most vehicle installs. Kits combine a fuse holder with relay sockets, clarifying pinout and contact rating for protected circuits. Choose fused kits if you want consolidated wiring; choose standalone relays if you need modular replacements.
Can I install a relay harness myself for relay control modules 2026?
An experienced DIYer can install a relay harness with basic tools and wire crimpers. Follow the relay socket pinout, match coil voltage and route a fused power lead to the fuse holder to prevent wiring faults. Vehicle owners comfortable with 12 V systems and testing with a multimeter can complete harness installs; novices should seek professional help.
Does a relay module protect against voltage spikes?
A relay module does not inherently protect against voltage spikes without added suppression components. Protective measures such as transient voltage suppression diodes, RC snubbers, or MOVs are needed because coil voltage switching can produce voltage spikes affecting contact rating. Systems exposed to load-shedding or inductive loads should include suppression or specify modules rated for surge protection.
Is Auxbeam GB80 worth it?
Auxbeam GB80 suitability cannot be fully judged without its published coil voltage and contact rating. Performance analysis is limited by available data; buyers should confirm coil voltage, contact rating, and IP67 rating before purchase. Buyers choosing top-rated relay control modules should compare those specs to vehicle amp rating and fuse holder compatibility.
Which suits wiring panels, Auxbeam GB80 or TopDiag P200?
TopDiag P200 or Auxbeam GB80 suitability for wiring panels depends on each unit’s DIN mount and contact rating. Compare pinout, fuse holder integration, and coil voltage to determine compatibility with panel layouts and expected inrush current. Panel builders should select the unit whose pinout and DIN mount match their wiring panel and verify contact rating against the load.
Are TopDiag P200 and Lumitek comparable?
TopDiag P200 and Lumitek can be comparable if both offer similar contact rating, coil voltage range, and relay socket layouts. Performance comparison requires checking pinout, fuse holder options, and amp rating to match application in a relay control modules 2026 setup. Systems integrators should compare those specs side-by-side and prioritize the higher contact rating for heavy loads.
Which relay pinout is standard for automotive relays?
A standard automotive relay pinout uses 4 or 5 pins labeled 85, 86, 30, 87 and sometimes 87a for SPDT. Pin labels map to coil pins 85/86 and contact pins 30/87/87a, which defines NO/NC and helps match relay socket alignment. Mechanics should confirm the relay pinout and contact rating against the vehicle wiring before swapping relays.
Should I choose waterproof relay boxes for off-road?
Waterproof relay boxes with IP67 or higher ratings reduce water ingress risk and are advisable for off-road use. Select enclosures with IP67 protection, sealed relay sockets, and suitable contact rating to prevent corrosion. Off-roaders and overlanders operating in mud or water crossings should prioritize IP67-rated boxes and confirm fuse holder sealing.
Where to Buy & Warranty Information
Where to Buy Top Relay Control Modules for Vehicles
Most buyers purchase Top Relay Control Modules for Vehicles from online retailers such as Amazon and eBay for selection and price comparison. Amazon marketplace listings carry Auxbeam, TopDiag, and Lumitek options with competitive pricing and user reviews. eBay lists new and used relay kits and harnesses; confirm seller return policy and part condition. When shopping online, compare contact current rating (A) and coil voltage (V) shown in listings.
Many buyers also purchase Top Relay Control Modules for Vehicles from physical auto parts stores such as AutoZone and NAPA Auto Parts when they need parts the same day. Shoppers can inspect harness connectors and confirm fit in person at AutoZone, O’Reilly Auto Parts, Advance Auto Parts, or 4 Wheel Parts. Specialty retailers like 4 Wheel Parts and Summit Racing often stock higher-contact current rating (A) relays for off-road applications and can advise on compatibility.
Buyers often find the best deals on Top Relay Control Modules for Vehicles during seasonal sales and on manufacturer official stores such as the Auxbeam, TopDiag, and Lumitek stores. Manufacturer official stores sometimes list limited-time discounts and bundle pricing that do not appear on third-party marketplaces. Also check Walmart.com and Summit Racing for holiday rebates and AutoZone online for clearance prices.
Warranty Guide for Top Relay Control Modules for Vehicles
Typical warranty length for Top Relay Control Modules for Vehicles is one year for harnesses and modules, with extended or lifetime warranties uncommon. Buyers should treat one year as the baseline expectation when comparing Auxbeam, TopDiag, and Lumitek offers.
Length: Warranties for harnesses and relay modules typically run 1 year, and extended or lifetime warranties are rare. If a longer term is advertised, require the exact written warranty period before purchase.
Water exclusions: Water ingress and corrosion damage are commonly excluded from coverage even if packaging labels a product as “waterproof”, so confirm the IP rating and exclusion language. If a listing shows an IP67 or IP68 rating, read the manufacturer exclusion clauses to see whether connector corrosion is covered.
Modifications void warranty: Cutting, splicing, or modifying factory wiring usually voids the warranty and manufacturers typically require original connectors and wiring to remain intact. Use manufacturer-approved harness adapters where possible to avoid voiding coverage.
Registration requirements: Most manufacturers require registration within 30 to 90 days to validate the warranty or to access extended coverage. Check the manufacturer’s official store or the product paperwork for the exact registration window and required information.
Commercial use exclusions: Warranties frequently exclude commercial, fleet, or rental use and commonly limit coverage to private passenger use only. If the relay module will see commercial application, request written warranty terms from the seller before purchase.
Labor and installation: Replacement labor and professional installation costs are typically not covered; warranties usually cover parts only. Budget for installation costs when planning for a potential warranty claim.
Before purchasing: Verify registration requirements, confirm IP rating and exclusion language, and check whether commercial use is excluded. Contact the manufacturer’s official store or the seller for written warranty terms before purchasing.
Who Is This For? Use Cases and Buyer Profiles
Common Uses for Top Relay Control Modules for Vehicles
Top Relay Control Modules for Vehicles serve situations from off-road lighting and winches to marine bilge pumps and food-truck refrigeration. Top Relay Control Modules for Vehicles centralize switching, provide fused outputs, and simplify multi-channel power distribution.
Overlanding installs: Top Relay Control Modules for Vehicles centralize switching for LED light bars and floodlights on a Jeep. These relay modules provide fused outputs and support high-current LED loads for safer night trails.
Landscaping fleet: Top Relay Control Modules for Vehicles distribute power for spotlights and electric winches on service trucks. These heavy-duty fused relay harnesses and high-amp modules protect wiring under repeated professional use.
Marine applications: Top Relay Control Modules for Vehicles control navigation lights, bilge pumps, and deck lighting on center-console boats. Marine-grade relay boxes with IP67-rated enclosures and corrosion-resistant connectors protect circuits from spray and salt.
Classic restorations: Top Relay Control Modules for Vehicles simplify custom fog-light and horn circuits on classic cars. Compact fused relay kits with clear pinouts allow wiring changes without altering original switchgear.
Food-truck upfits: Top Relay Control Modules for Vehicles manage refrigeration units and extra lighting from a single distribution point. Labeled fused outputs and multi-channel layouts make wiring cleaner and reduce circuit overlap.
ATV/UTV rigs: Top Relay Control Modules for Vehicles supply auxiliary lights and winches on ATVs and UTVs. Low-profile, vibration-resistant relay modules and amp-rated harnesses help maintain reliable power on rough terrain.
Motorsport diagnostics: Top Relay Control Modules for Vehicles aid quick electrical troubleshooting between races. Power circuit probes like the TopDiag P200 and relay testers speed fault tracing and reduce downtime.
Campervan conversions: Top Relay Control Modules for Vehicles centralize switching for interior lights and water pumps in converted vans. Labeled gang switches and fused outputs make multi-accessory installs cleaner and safer for van electrics.
Emergency upfits: Top Relay Control Modules for Vehicles manage emergency lights, sirens, and auxiliary power in police vehicles. High-reliability relay modules with redundant fusing and clear channel separation reduce risk of interference with mission-critical circuits.
Solar prototypes: Top Relay Control Modules for Vehicles switch DC loads on off-grid solar trailers and small platforms. DIN-mount relay modules with specified contact current ratings (A) and fuse protection enable safer switching and integration with trailer distribution.
Who Buys Top Relay Control Modules for Vehicles
Buyers of Top Relay Control Modules for Vehicles range from overlanding enthusiasts to commercial upfitters and marine owners. These buyers choose modules for fused outputs, high-amp handling, waterproof enclosures, and diagnostic compatibility.
Overlanding enthusiasts: Overlanding enthusiasts buy Top Relay Control Modules for Vehicles to power LED light bars and winches on trucks and SUVs. Overlanding buyers prefer multi-gang modules and fused harnesses that consolidate switching and protect vehicle wiring during off-road use.
Professional upfitters: Professional upfitters and fleet electricians use Top Relay Control Modules for Vehicles for high-amp switching on service vans. These professionals require documented pinouts, warranty support, and robust fused harnesses for repeated commercial use.
DIY mechanics: DIY mechanics buy Top Relay Control Modules for Vehicles to add fog lights or horns without altering original switchgear. DIY buyers prefer compact fused relay kits with clear pinouts and plug-and-play harnesses for cleaner installs.
Marine owners: Marine owners choose Top Relay Control Modules for Vehicles for navigation lights, bilge pumps, and deck lighting. Marine buyers want IP67-rated enclosures and marine-grade connectors to resist spray and salt corrosion.
Food-truck operators: Food-truck operators install Top Relay Control Modules for Vehicles to manage refrigeration and extra lighting from a single distribution point. Labeled fused outputs and multi-channel layouts simplify wiring and reduce circuit overlap during service.
Track teams: Track teams use Top Relay Control Modules for Vehicles for lightweight, vibration-resistant power distribution in race cars. Teams select DIN-mount modules, high-temp components, and diagnostic-compatible probes for quick pit repairs.
Rural users: Rural users add Top Relay Control Modules for Vehicles to power lighting and electric pumps on tractors and utility vehicles. Rural buyers look for high-current relays and durable enclosures that tolerate dust, vibration, and long duty cycles.
Hobbyist engineers: Hobbyist engineers buy Top Relay Control Modules for Vehicles for programmable control and integration with diagnostic tools. Hobbyist buyers value DIN-mount options, clear contact current ratings (A), and upgradeable testers for prototyping.
